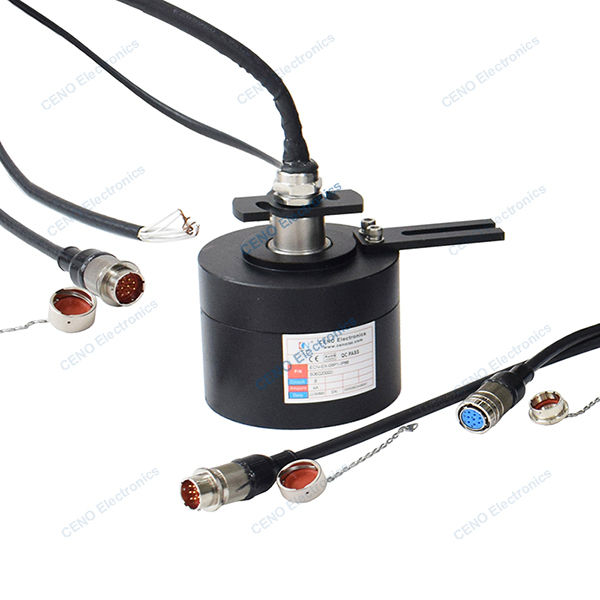

Low temperature Anti-explostion Slip Ring with water proof electric power joint
  • Low temperature Anti-explostion Slip Ring with water proof electric power joint
  • Low temperature Anti-explostion Slip Ring with water proof electric power joint
  • Low temperature Anti-explostion Slip Ring with water proof electric power joint
  • Low temperature Anti-explostion Slip Ring with water proof electric power joint
  • Low temperature Anti-explostion Slip Ring with water proof electric power joint

Low temperature Anti-explostion Slip Ring with water proof electric power joint

Place of Origin China
Nombre de la marca CENO
Certificación CE,RoHS,UL,ISO9001
Model Number ECN-EX-08P1-IP66
Detalles del producto
Circuit number & Current:
8 circuits * 4A
Rating Voltage:
0 ~ 1000 VAC/VDC
Dielectric strength:
≥2500VAC@50Hz
Isolation resistance:
≥500MΩ@500VDC
Contact material:
Precious Metal
Housing material:
Aluminum Alloy
Operating speed:
0~50 rpm
IP Grade:
IP66
Working temperature:
-40°C~+60°C
Working humidity:
≤ 60%
Outer diameter:
Ø124mm
Lead wire length:
As customized
Condiciones de pago y envío
Minimum Order Quantity
1pcs
Precio
Negociable
Packaging Details
Carton
Delivery Time
Off the shelf
Payment Terms
T/T,Paypal,Western Union, L/C
Supply Ability
10000pcs month
Descripción del producto

Low temperature Anti-explostion Slip Ring with water proof electric power joint



ECN-EX-08P1-IP66 is CENO anti-explosion slip ring with protection grade IP66 for the low temperature environment. Anti-explosion slip ring is one type of CENO slip ring series, it is a high safe and reliable conductive slip ring that can work in explosive environments. It is generally used in petroleum, chemical / explosive environments. For more information about how CENO slip ring can equip in your machinery, please contact us.




Features

  • Anti-explosion design with grate II2 G Ex d IIC T5 Gb ATEX
  • Circuits 1~300 option
  • IP grade IP51-IP68 option
  • Install easy & Free maintenance


Applications

  • Automatic machine
  • Explosion proof pack machine
  • Chemical equipment
  • Packing equipment
  • Explosive dust atmospheres


Optional

  • Circuits, Voltage, Current
  • Anti-explosion grade
  • Contact / Housing Materials
  • Protection grade
  • Working speed & temperature




Specification

ECN-EX-08P1-IP66

Specification
Current & Circuits8 circuits * 4A
Rating Voltage0 ~ 1000 VAC/VDC
Dielectric strength≥2500VAC@50Hz
Isolation resistance≥500MΩ@500VDC
Working temperature-40°C~+60°C
Working humidity60 %RH
IP protection gradeIP66
Electrical NoiseMax 15mΩ (50rpm)
Operating speed0~50rpm
Outer diameterØ124mm
Contact materialPrecious Metal
Housing materialAluminum alloy
Explosion-proof gradeII2 G Ex d IIC T5 Gb ATEX
Lead wire sizeAs customized
Lead wire lengthAs customized







Outline drawing
Low temperature Anti-explostion Slip Ring with water proof electric power joint 0



Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.

FAQ

1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification
ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
