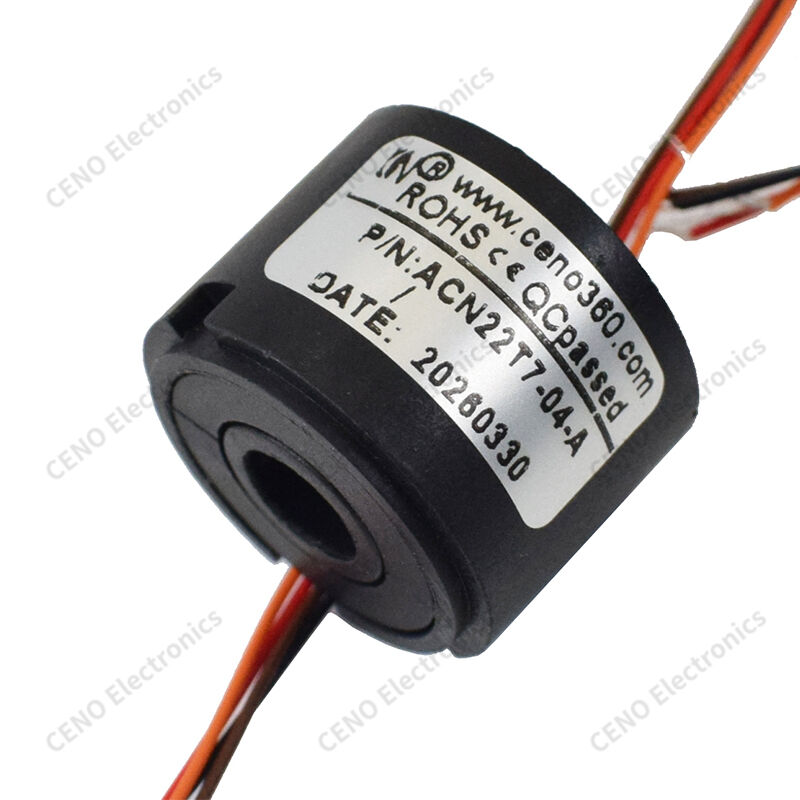

Compact Through-Bore Slip Ring With a 7mm Central Bore And 22mm Outer Diameter
ACN22T7-04-A is CENO compact through-bore slip ring, designed for continuous 360° rotation without wire tangling. With a 7mm central bore, 22mm outer diameter, and 4 circuits, it delivers reliable power and signal transmission for space-constrained systems. Featuring precious metal contacts, it ensures low noise, minimal resistance, and long life, meeting RoHS and CE standards for industrial use.
Features
u Through-bore design
u Compact form factor
u Precious metal contacts
u Low electrical noise
u RoHS & CE certified
u Long service life
Applications
u Automation equipment
u Medical instruments
u Robotic joints
u Test equipment
u LED stage lighting
Optional
u Custom circuits
u Extended temperature
u Shielded wires
u Connectors
u IP-rated housing
u Hybrid signals
Specification
|
ACN22T7-04-A
|
Specification
|
|
Protection(IP Grade)
|
IP40
|
|
Working Temperature
|
-20°C~+60°C
|
|
Lead Wire Size
|
AWG30# Wire Teflon® UL
|
|
Rating Voltage
|
0~110VAC
|
|
Circuits & Current
|
4Circuits*1A
|
|
Dielectric Strength
|
≥200VAC@50Hz
|
|
Insulation Resistance
|
50MΩ@100VDC
|
|
Electrical Noise
|
Max 10mΩ
|
|
Working Speed
|
0~10rpm
|
|
Contact Material
|
Precious Metal
|
|
Housing Material
|
Engineering Plastic
|
|
Lead Wire Length
|
Rotor:250±5mm; Stator:250±5mm
|
