Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof
Waterproof slip ring with IP65 dustproof & waterproof

Waterproof slip ring with IP65 dustproof & waterproof

Lugar de origen Porcelana
Nombre de la marca CENO
Certificación CE,RoHS,ISO9001,UL
Número de modelo ECN000-03P2-IP65
Detalles del producto
Protección (grado IP):
IP65
Humedad de trabajo:
60% HR
Temperatura de trabajo:
-20 ℃ ~+60 ℃
Voltaje nominal:
0~24VAC/VDC
Circuitos y corriente:
3 circuitos *10A(24V)
Rigidez dieléctrica:
≥1000VCA@50Hz
Resistencia de aislamiento:
500MΩ@500VCC
Ruido eléctrico:
Máximo 30 mΩ (50 rpm)
Longitud de alambre de plomo:
Rotor: 2000 mm; Estator: 2000 mm
Velocidad de trabajo:
0 ~ 10 rpm
Vía de rotación:
Instalación de las bridas laterales del estator
material de contacto:
Metal precioso
Material de la carcasa:
Aleación de aluminio
Condiciones de pago y envío
Cantidad de orden mínima
1 Uds.
Precio
Negociable
Detalles de empaquetado
Cartón/como solicitud
Tiempo de entrega
1 semana
Condiciones de pago
T/T, PayPal, Western Union
Capacidad de la fuente
500 unidades por mes
Descripción del producto

Waterproof slip ring with IP65 dustproof & waterproof

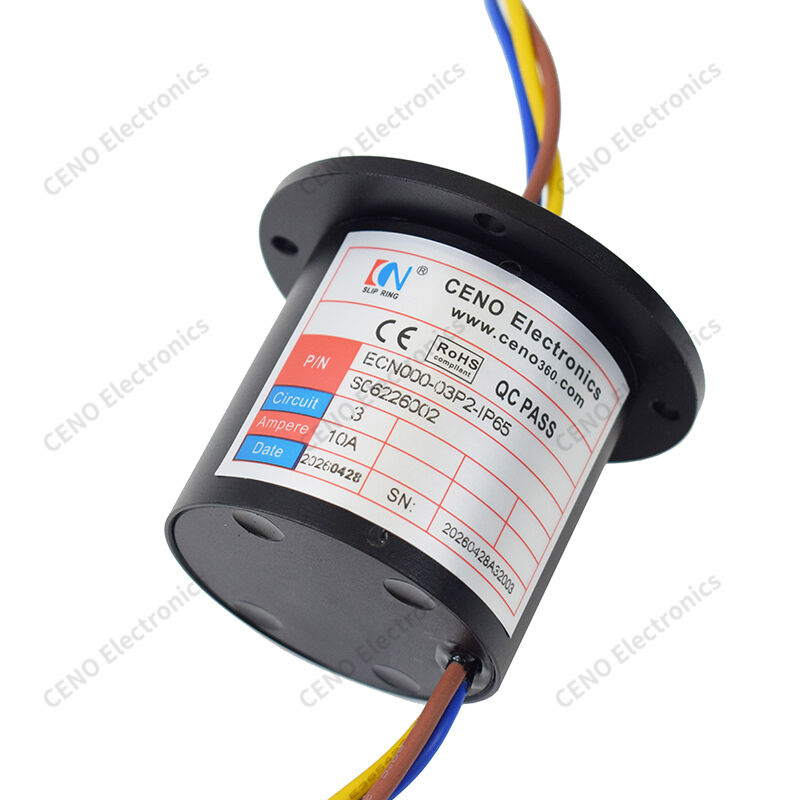

ECN000-03P2-IP65  is CENO  Waterproof slip ring features 3 independent circuits with 10A current per channel, rated IP65 dustproof & waterproof for wet/outdoor rotating equipment. Adopting precious metal contact structure, it enables 360° unlimited rotation power transmission without wire tangling. Black anodized metal housing with flange mounting holes for easy installation, certified CE & RoHS compliant, factory inspected with stable low contact resistance and long service life.


Features

  • 3 circuits
  • 10A per line
  • IP65 sealed
  • Precious metal contact
  • Flange mount
  • CE RoHS certified

Applications

  • Rotating camera pan-tilt
  • Outdoor rotary light
  • Automated rotary jig
  • Small robot joint
  • Car wash rotary unit
  • Packaging machinery

Optional

  • Custom wire length
  • Extra circuits
  • Higher current
  • Higher IP grade
  • Special voltage
  • Custom housing color

Specification

ECN000-03P2-IP65

Specification

Protection(IP Grade)

IP65

Working Humidity

60%RH

WorkingTemperature

-20℃~+60℃

Rating Voltage

0~24VAC/VDC

Circuits& Current

3 Circuits *10A(24V)

Dielectric Strength

≥1000VAC@50Hz

Insulation Resistance

500MΩ@500VDC

Electrical Noise

Max 30mΩ(50rpm)

Lead Wire Length

Rotor: 2000mm; Stator:2000mm

Working Speed

0~10 rpm

Rotation Way

Stator side flange installation

Contact Material

Precious Metal

Housing Material

Aluminum Alloy


Outline drawing

 Waterproof slip ring with IP65 dustproof & waterproof 0

CENO is a technologically advanced company in the slip ring field, specializing in research and development, manufacturing, and sales. We utilize advanced equipment and high-precision test instruments to ensure product quality and reliable performance. Our facility covers 3000 square meters and is located in Shenzhen, China.

CENO manufacturing facility and production environment
Certifications

ISO9001, CE, RoHS, UL, Explosion-proof

CENO product certifications and quality standards
CENO Advantage

Our engineering team members have more than 10 years of experience in slip ring technology. Operators working on critical procedures are all qualified through internal training programs.

Services Provided
  • 24/7 consultant service
  • Mass and customized production
  • Solution offerings for 360° rotation systems
Welcome to consult us with your requests for any 360° rotation system. We will provide one-stop service and respond to your inquiries promptly.
