Integrate RF Slip Ring with Encoder Ethernet Signal and Radio Frequency Rotary Joint

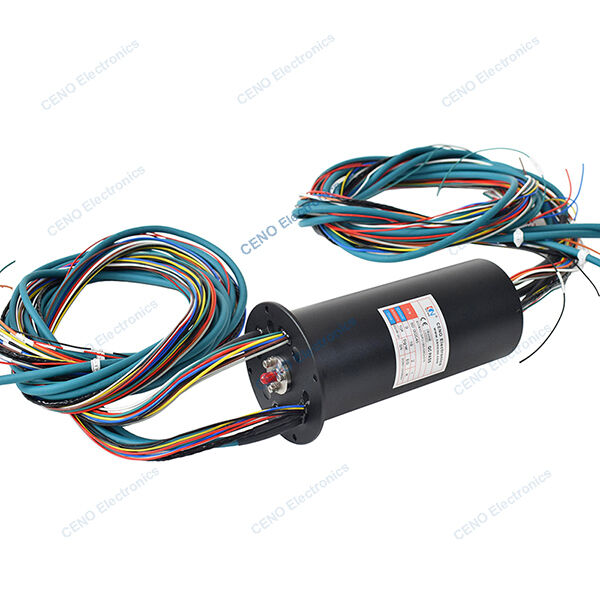

ECN000-09P2-19S-02EG-01R is CENO Integrate Slip Ring combined Electric Power, Encoder, CANBUS, Ethernet and weak signals. CENO Integrate slip ring can be highly integrated with various transmission modules to form a multi-functional rotary connection solution, specifically used in complex systems. Features a modular design, supporting various channel combinations and customization options. For more information please contact CENO expert team.
Specification
| ECN000-09P2-19S-02EG-01R Specification |
| Current & Circuits |
9 * 10A; 2 * 7A; 1 * Encoder; 1 * CANBUS; 2 * Ethernet Signal; 6 * Signal |
| Rating Voltage |
0 ~ 220 VAC/VDC |
| Dielectric strength |
≥1000VAC@50Hz; 300VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC; ≥100MΩ@100VDC |
| Contact resistance wave |
≤ 70mΩ |
| Working temperature |
-25°C~+55°C(W); -30°C~+65°C(S) |
| Working humidity |
95 %RH |
| IP protection grade |
IP51 |
| Operating speed |
0~60rpm |
| Inner / Outer diameter |
Ø38.1mm / Ø76mm |
| Contact material |
Precious Metal / Gold to Gold |
| Housing material |
Aluminium Alloy |
| RF |
Parameters |
| Frequency range |
DC-18GH |
| Connector type |
SMA - F(50Ω) |
| Insertion loss |
≤0.3dB |
| Insertion loss rate |
≤0.05dB |
| VSWR, max |
≤ 1.25 |
| VSWR WOW, max |
≤ 0.05 |
| Average peak power |
100w@DC-2GHz; 50w@DC2-8GHz; 250w@DC8-15GHz; 20w@DC15-18GHz |
Features
1 Integrate Encoder, Canbus, Ethernet, RF and Electric Power
2 RF Signal be up to 1 - 8 channels
3 Stable transmitting, no string code
4 Install easy & Free maintenance
Applications
1 Radar antenna
2 High definition video
3 Satellite earth station
4 EMC System
5 Medical equipment
Optional
1 Circuit, Voltage, Current
2 Signals and data
3 Contact / Housing Materials
4 Protection grade
5 Working speed & temperature
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
